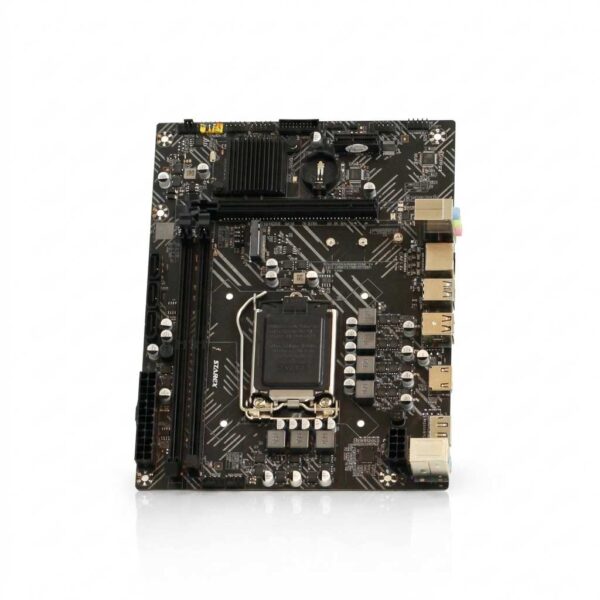

Starex ST-H510 LGA1200 DDR4 Micro-ATX Motherboard
The Starex ST-H510 is an Intel H510 Micro-ATX motherboard supporting 10th & 11th Gen Intel Core i3/i5/i7 processors (LGA1200), dual-channel DDR4 up to 64GB (2933MHz), M.2 PCIe/SATA slot, HDMI, DisplayPort (DP), and Gigabit LAN.
Key Features:
– LGA 1200 Socket supporting 10th & 11th Generation Intel Core i3/i5/i7 series CPU
– Intel H510 Express Chipset with AMI EFI BIOS
– 2 × 288-pin DDR4 DIMM slots supporting up to 64GB (2133/2400/2666/2933MHz)
– 1 × M.2 slot (PCIE/SATA mode) & 3 × SATA 3.0 (6Gb/s) ports
– Dual display outputs: 1 × HDMI & 1 × DP (DisplayPort)
– 1 × PCIe x16 slot & 1 × PCIe x1 slot for expansion
– Realtek 10/100/1000Mbps Gigabit LAN onboard & 6-channel HD Audio
– Compact Micro-ATX form factor (17 × 22cm) backed by 3 Years Official Replacement Warranty
7,500৳
100 in stock
100 in stock
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Description
Starex ST-H510 LGA1200 DDR4 Micro-ATX Motherboard
Unlock robust computing power for office, home, and gaming systems with the Starex ST-H510 motherboard. Built on the Intel H510 chipset and LGA1200 socket, it supports 10th and 11th Generation Intel Core i3, i5, and i7 processors. Featuring high-speed M.2 storage (PCIe/SATA mode), dual digital outputs with HDMI and DisplayPort (DP), up to 64GB dual-channel DDR4 memory, and Gigabit LAN, the ST-H510 offers uncompromising performance and durability.
Key Highlights & Features
- LGA 1200 CPU Support: Compatible with 10th and 11th Generation Intel Core i3 / i5 / i7 series desktop processors.
- Dual Display Outputs: Features 1 × HDMI port and 1 × DisplayPort (DP) for high-definition multi-monitor configurations.
- Flexible Storage Options: Includes 1 × M.2 slot (supporting PCIE/SATA modes) plus 3 × high-speed SATA 3.0 ports.
- Dual-Channel DDR4 Memory: 2 × 288-pin DDR4 slots supporting 2133/2400/2666/2933MHz frequencies up to 64GB total memory.
- Gigabit Ethernet & HD Audio: Integrated 10/100/1000Mbps RJ45 LAN with 6-channel HD Audio Codec onboard.
- Compact Micro-ATX Layout: Dimensions of 17 × 22 cm ideal for mini-tower, office, and compact desktop chassis.
Technical Specifications
| Brand | STAREX |
|---|---|
| Model | ST-H510 |
| CPU Socket | LGA 1200 Socket |
| CPU Compatibility | Supports Intel Core i3 / i5 / i7 series 10th–11th generation CPU |
| Chipset | Intel H510 Chipset |
| BIOS | AMI EFI BIOS |
| Memory Slots | 2 × 288-pin DDR4 slots |
| Memory Support | Dual-channel DDR4 2133 / 2400 / 2666 / 2933 MHz (Up to 64GB) |
| Storage Interfaces | 1 × M.2 slot (PCIE/SATA mode), 3 × SATA 3.0 ports |
| Expansion Slots | 1 × PCI Express x16 slot, 1 × PCI Express x1 slot |
| Rear I/O Video Ports | 1 × HDMI port, 1 × DP (DisplayPort) |
| Rear I/O USB & Ports | 2 × USB 3.2 ports, 2 × USB 2.0 ports, 1 × PS/2 port, 1 × RJ45 Gigabit LAN port |
| Audio | 6-channel HD Audio Codec onboard, 1 × Audio port (Line In/Line Out/MIC In) |
| Internal Headers | 1 × USB connector (supports 2 × USB 3.2), 2 × USB connectors (supports 4 × USB 2.0), 1 × F_AUDIO connector, 1 × F_PANEL, 1 × SPEAKER, 3 × FAN connectors, 1 × COM connector |
| Power Connectors | 1 × 24-pin ATX power connector, 1 × 8-pin ATX 12V power connector |
| Form Factor & Dimensions | Micro-ATX (17 × 22 cm) |
| Warranty | 3 Years Official Replacement Warranty |
Specification
Overview
| Video Ports | DP, HDMI |
|---|---|
| CPU Socket | LGA1200 |
| Chipset | Intel H510 |
| RAM Type | DDR4 |
| RAM Slots | 2 |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
